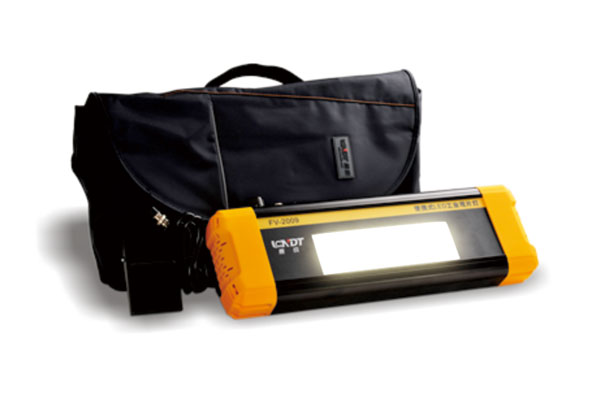

Portable Industrial LED Film Viewer FV-2009



product image
product image
product image
product image

Product Characteristics

  • Max. L : 103,000Cd/M2 (323,420Lux)
  • Viewer window: 200 x 60mm
  • Uniformity: 0.95, Diffusion factor:0.95
  • Weight less than 2.5 Kg
  • Complies with ISO 5580 and EN 25580

    • FV-2009 LED Film Viewer is developed according to Norm of ISO5580 Industrial radiographic illuminators - Minimum requirements. Inherited fine traditions of FV-2008, adopt powered LED area light source, enable the viewer to high luminance and excellent uniformity, theoretical lifetime span up to more than 50,000 hours.

    Thanks to the portable, rugged and smart design, FV-2009 is extremely suitable for fieldwork. Can view films to 4.0H/D, meet the needs of daily use. It adopt constant current power which is specially designed to the viewer. With its help, the LED will be protected notablely, so the lifetime can be extended. For the sake of Safety use, low voltage PWM unlimited dimmer is used. Foot mode and hand mode are equipped.


    Luminance distribution of the view window (Unit: Cd/m2):

    102,300 102,000 101,400 100,400
    102,000 103,000 102,080 102,080
    101,500 102,300 101,600 101,000



    Spare parts list:

    Foot pedal: 1

    Carrying bag: 1

    Light mask (200 x 50mm): 1

    Instruction(English):1

    Guarantee and report(English) :1

    Max Luminance: >=103,000Cd/M2(323,420Lux) Uniformity: g>=0.95
    Diffusion Factor: σ'>=0.95 Viewer window: 200 x 60mm
    Accuracy：±0.02D Max. Density(Densitometer)>= 5.0D
    Surface temp. rise ≤ 15oC
    After 12 hours continues maximum luminance    		 POWER: 85-264VAC 47~63Hz.
    (Full range)
    Dimension: 17.9 x 5.5 x 2.6"
    455 x 140 x 65mm (L x W x H)    		 Weight: 5.5pounds(2.5kg)
    Complies with ISO 5580 and EN 25580
    CE Approved 2 Years Free Warranty
